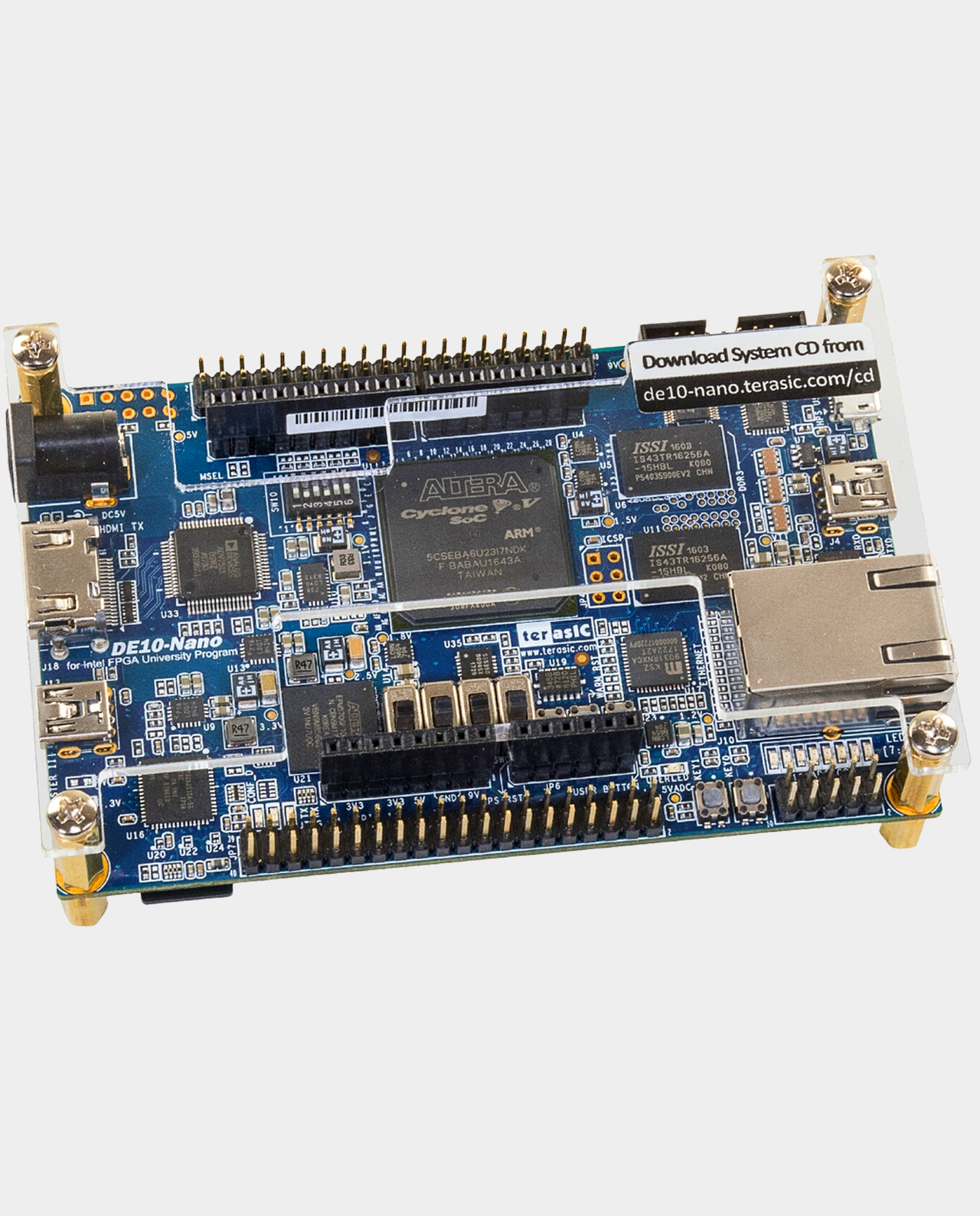

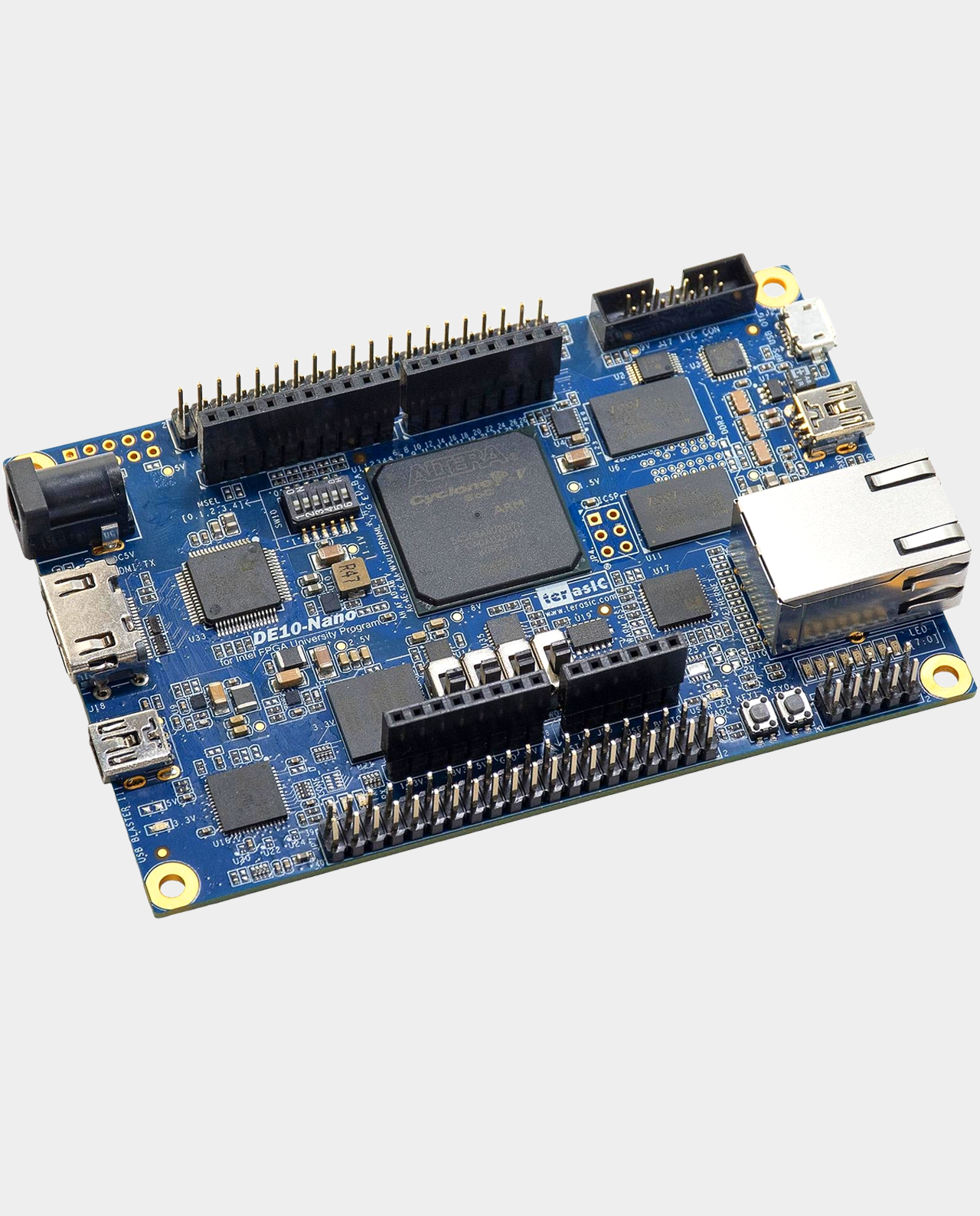

Terasic DE10-Nano FPGA Development Kit

Terasic DE10-Nano P0496 FPGA Development Kit

The Terasic DE10-Nano is a powerful FPGA development board built around the Intel Cyclone V SoC FPGA, combining programmable FPGA logic with a dual core ARM Cortex A9 processor and 1GB DDR3 memory. It is also the core FPGA board required to build a MiSTer FPGA system, providing the main processing hardware onto which MiSTer SDRAM, I/O and USB expansion boards are added.

Ideal for MiSTer FPGA

The DE10-Nano is the original and established hardware platform for building a MiSTer FPGA, using its Cyclone V FPGA to recreate classic computers, games consoles and arcade hardware. If you are building a MiSTer system from individual components, the genuine Terasic DE10-Nano provides the essential starting point for your build. It can then be expanded with MiSTer FPGA expansion boards and addons to create a system tailored to your requirements.

More Than a MiSTer Main Board

Although best known within the retro gaming community as the main board at the heart of a MiSTer FPGA system, the Terasic DE10-Nano is a fully featured FPGA development platform in its own right. It is suitable for FPGA development, embedded systems, hardware prototyping and embedded Linux, making the DE10-Nano very versatile.

Key Features:

✅ Core FPGA Main Board for MiSTer FPGA Systems
✅ Intel Cyclone V SE 5CSEBA6U23I7 SoC FPGA
✅ Dual-Core ARM Cortex-A9 Processor
✅ 1GB DDR3 SDRAM
✅ HDMI Video Output
✅ Gigabit Ethernet
✅ microSD Card Slot
✅ Two 40-Pin GPIO Expansion Headers
✅ Arduino Expansion Header with Uno R3 Compatibility
